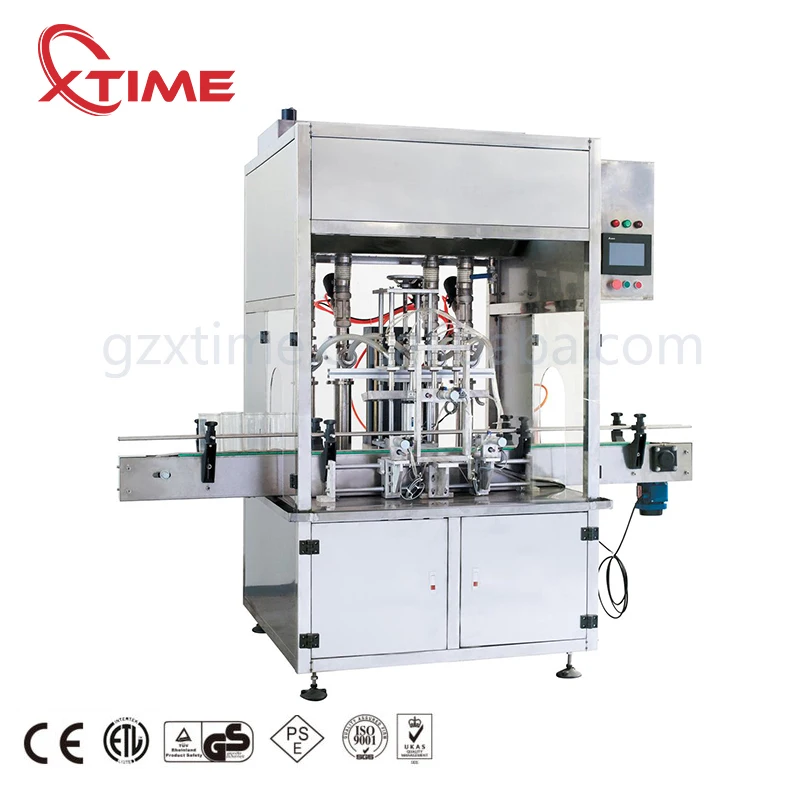

Automatic High Speed Liquid Filling Machine/6 heads self-flowing oil juice water bottle filling
|² Technical parameters:|
1.Qty of filling head: 6 heads
2.Filling capacity: 50ML-5000ML (Compatible filling capacity tolerance for a single machine is one times. To be determined by customer requirements).
3.Filling method: Equal-liquid level self flowing type.
4.Filling speed: 6~8 bottles/min. head (500ml bottle).
5.Filling accuracy: ±1%.
6.Program control: PLC + touch screen.
7.Main materials: #304 stainless steel, PVC used in food industry.
8.Air pressure: 0.6-0.8Mpa.
9.Conveyer belt: Stainless steel chain belt of 82mm in width. Speed: 0-15m/min. Distance away from the ground: 750mm±25mm.
10.Conveyor motor: 370W frequency conversion speed regulation motor.
11.Power: 1KW/220V single phase.
12.Capacity of material tank: 200L (with liquid level switch).
13.Protective device: Outage alarm on shortage of liquid in the reservoir tank.
² Main configuration:
1. Material tank, filling nozzle and the parts access to liquid are made of #304 stainless steel and PVC used in food industry.
2. Pneumatic components: AIRTAC of Taiwan.
3. PLC: Siemens of Germany.
4. HMI: 7" color touch screen of Siemens of Germany.
5. Photoelectric sensor: LEUZE in Germany or SICK of Germany.
6. Relay and air switch: Schneider of France.
7. Material pumping: Domestic stainless steel gear pump.
8. Motor frequency converter: AB of the United States, Schneider of France or Siemens of Germany.
9. Conveyer belt material: Stainless steel chain belt with a width of 82mm.
10. Conveyer belt motor: Domestic AC motor.
11. Materials of the seal ring of the sealing machine: silicone, fluorine rubber, polytetrafluoroethylene.
